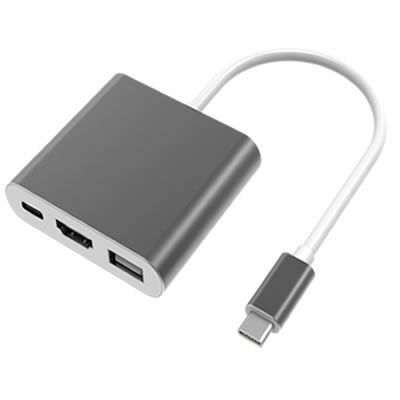

Product name: Type C TO HDMI+USB3.0+PD
Model No.:XY-U326
Features:
1, Aluminum shell

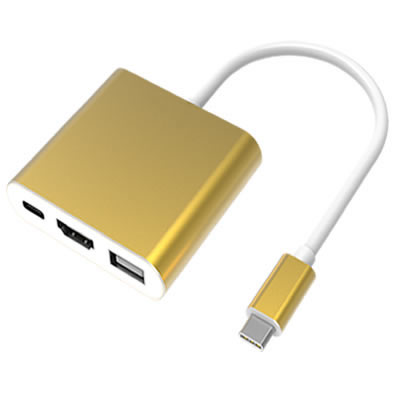

2, Silver,black and gold color option
3, HDMI Maximum support 3840*2160 30Hz ,backward compatible,
4, support HDCP1.4/2.0 video play,
5, support audio and video synchronization output
6, 2, USB 3.0 Maximum transmission bandwidth 5Gbps,transmission speed 350M/S,backward compatible USB2.0，USB1.1,USB Maximum output current 900mA
7, PD charging support to charge for Macbook or Google ’ Chromebook and other USB-C accord with PD 2.0 agreement ’ devices,maximum support 20V/3A（60W)
8, Support hot plug,
9, support 3 ports multi-use at the same time
10, Adapt VL100+PS176+VL210 core

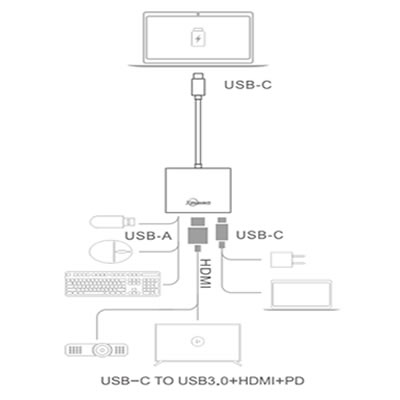

Use instruction:
1, connect TYPE-C male input port to computer TYPE C female port
2, TYPE C Female port connect computer adapter to charge computer
3, HDMI port can connect to display,television and projector HDMI port
4, USB port can connect mouse,U dish and other standard USB devices
4, When pull out the PD port,the connected USB device would turn off,then it will connect again after seconds, otherwise,to prevent data loss when the data are transmiting,aviod disconnecting the PD power supply.
